SPECIFICATION:-

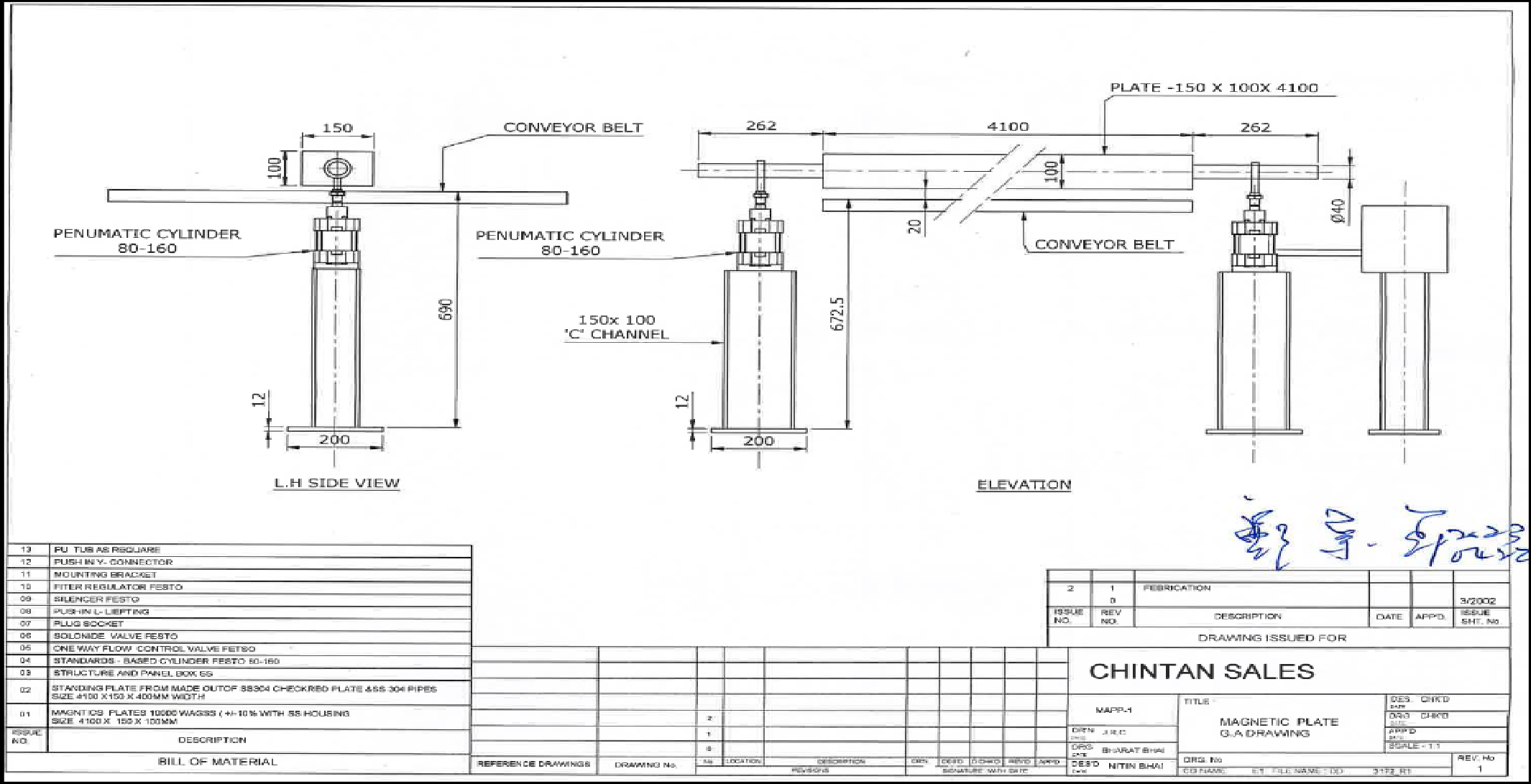

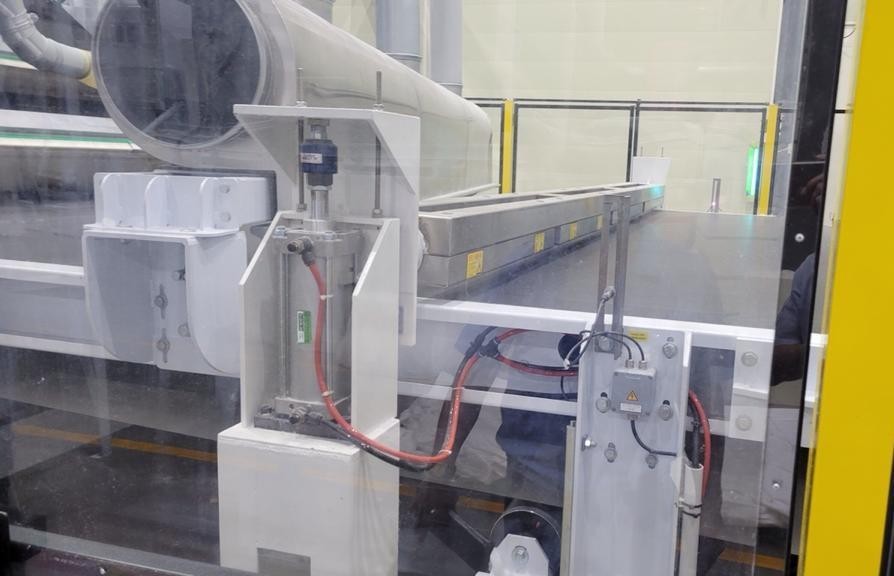

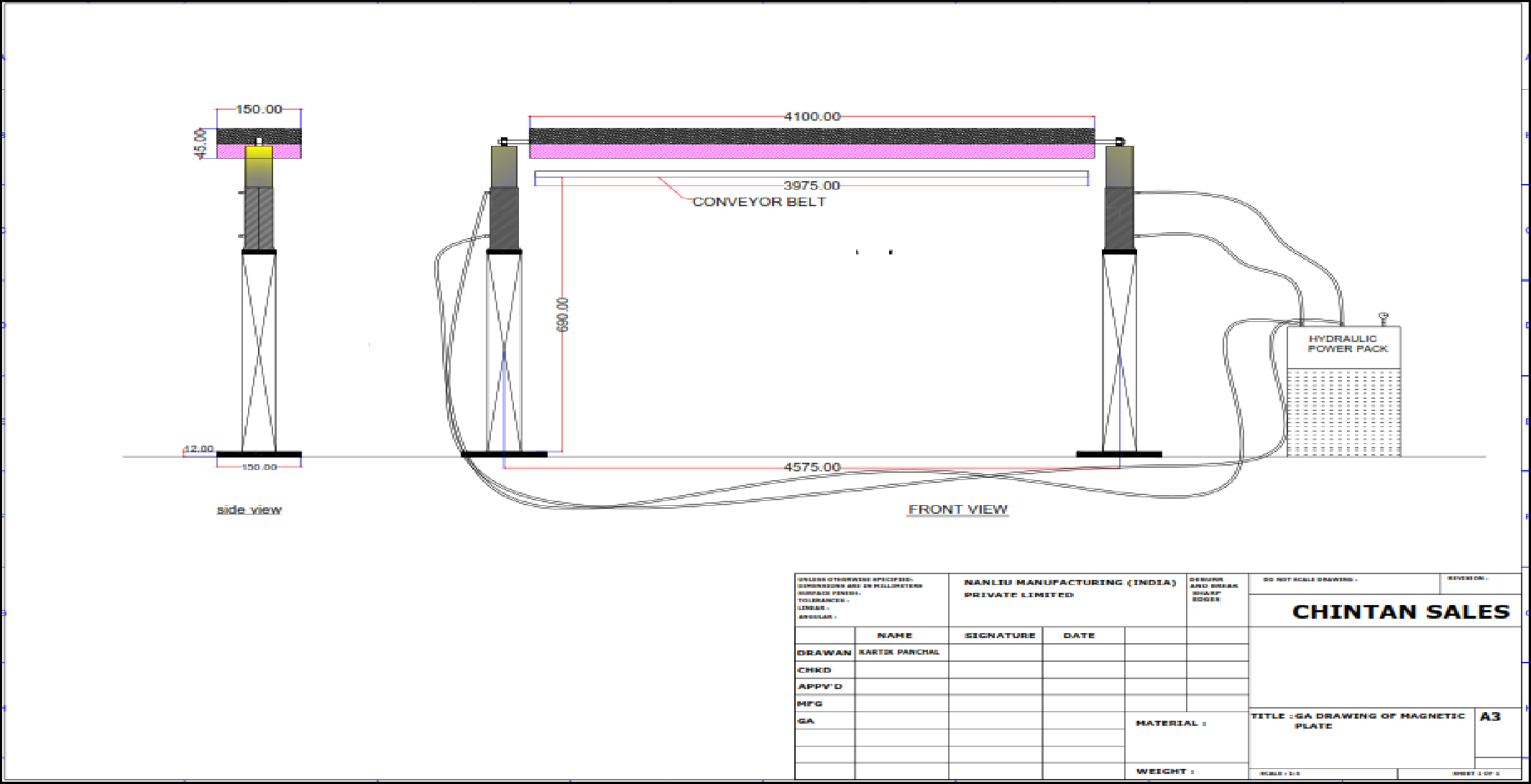

• Design, Drawing, Manufacturing, Supply and Installation of Magnate Plate Unit with tilting facility mounted on Pneumatic cylinders as per following specification with tilting facility.

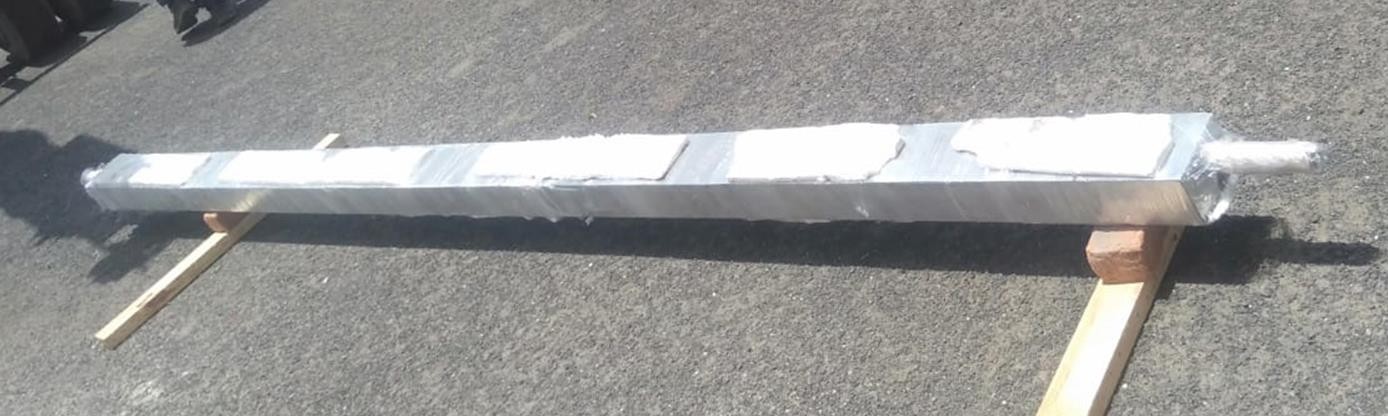

• Magnetic plate size 4100 x 150 x 100 mm Hollow Structure
• Magnet Size: 25 x 65 x 900 (8 Magnets) Approx.
• 10000 GAWSS power

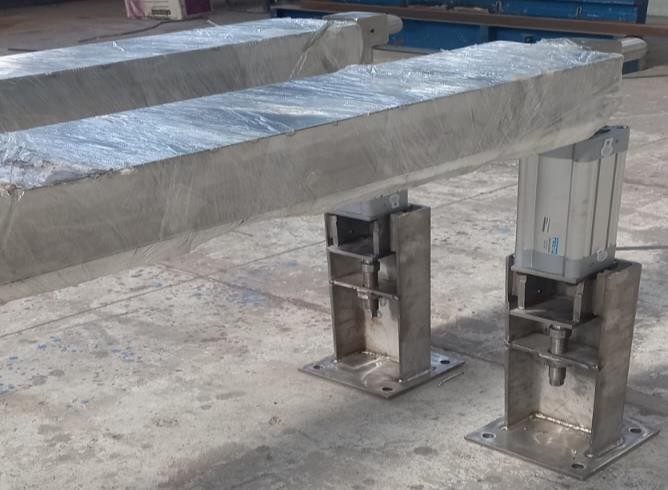

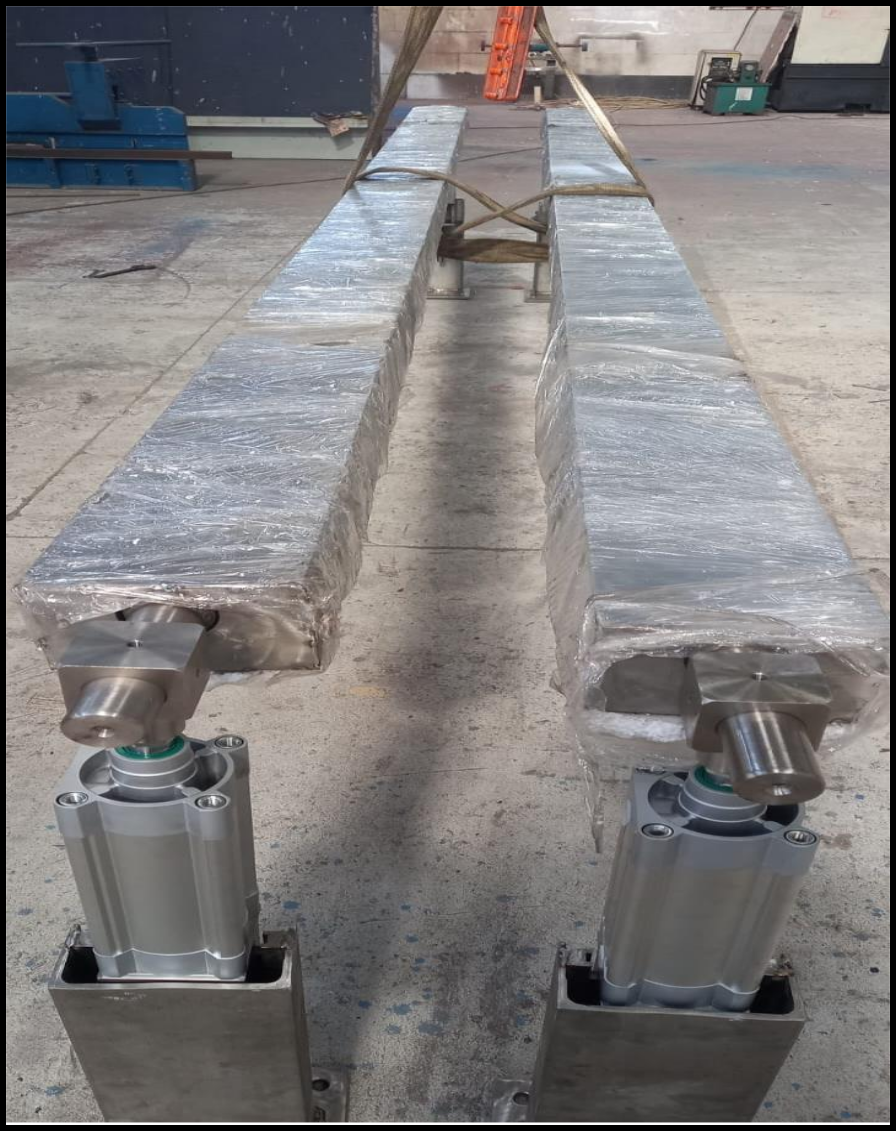

• Pneumatic cylinder with 150 Stroke length / as per system requirement (2 Nos.)
• FRL, Solenoid Valve, Actuator, Fittings & Necessary Hardware.
• Mounting for pneumatic cylinders foundation plate.

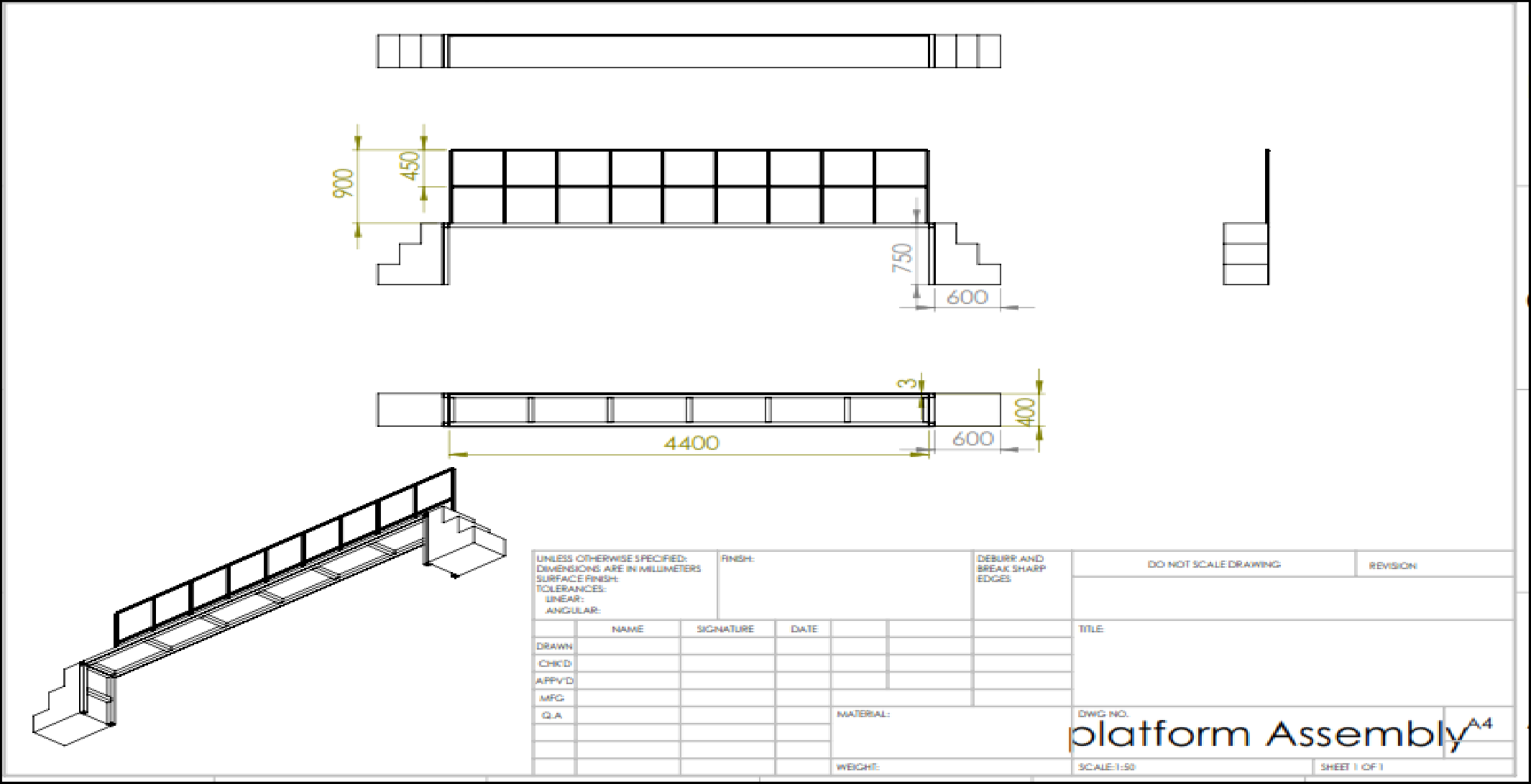

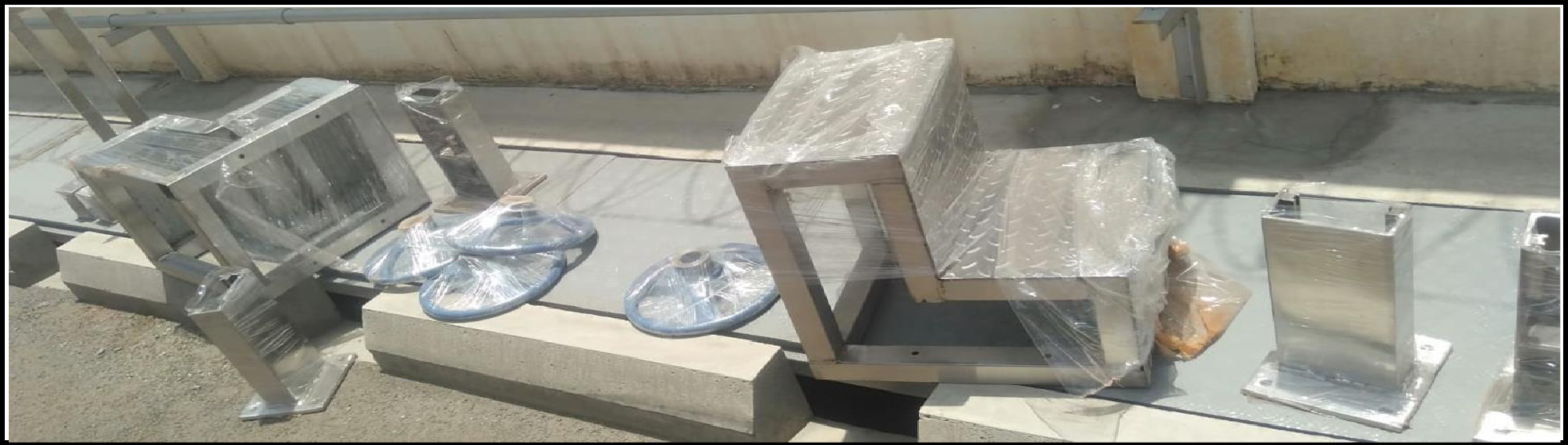

• Standing Plate Form Made Out Of 5mm MS Checkered Plates
• Size: Approx. 4100 L X 400 Mm W
• Platform Height: Approx. 1000mm
• With Both Side Pillars And Hanging Arrangements With Bridge.
• Including Installation And Fixing To The Floor With Anchor Fastenes
