Pneumatic Torque Wrench is an air motor driven planetary gear box having a very high reduction ratio. The gear box is provisioned with a reaction arm to absorb the torque reaction. Unlike impact wrench a pneumatic torque wrench is driven by continuous gearing and hence has no noisy and hazardous hammering. This is why a pneumatic torque wrench has an excellent accuracy and repeatability.

Pneumatic torque wrench offers following significant advantages :

• Pneumatic is always know for clean and tidy way of working
• Combination of Air motor with planetary gear guarantees, a much faster, safe & economical operation
• Easy and fast operation.

FRL UNIT : It is used to regulate the air pressure and properly lubricate the air

• motor for ultimate life. The Regulator regulates the inlet air pressure and controls the output torque of pneumatic torque wrench.
• All pneumatic tools must be used with FRL Unit.
• CS-Hydra make Pneumatic torque wrenches offer reliable and dependable solution for the torquing and untorquing of heavy duty bolts and nuts at various industries where speed, power, accuracy and safety are required Pneumatic Torque wrenches are the preferred torquing method to achieve productivity with less man-power.

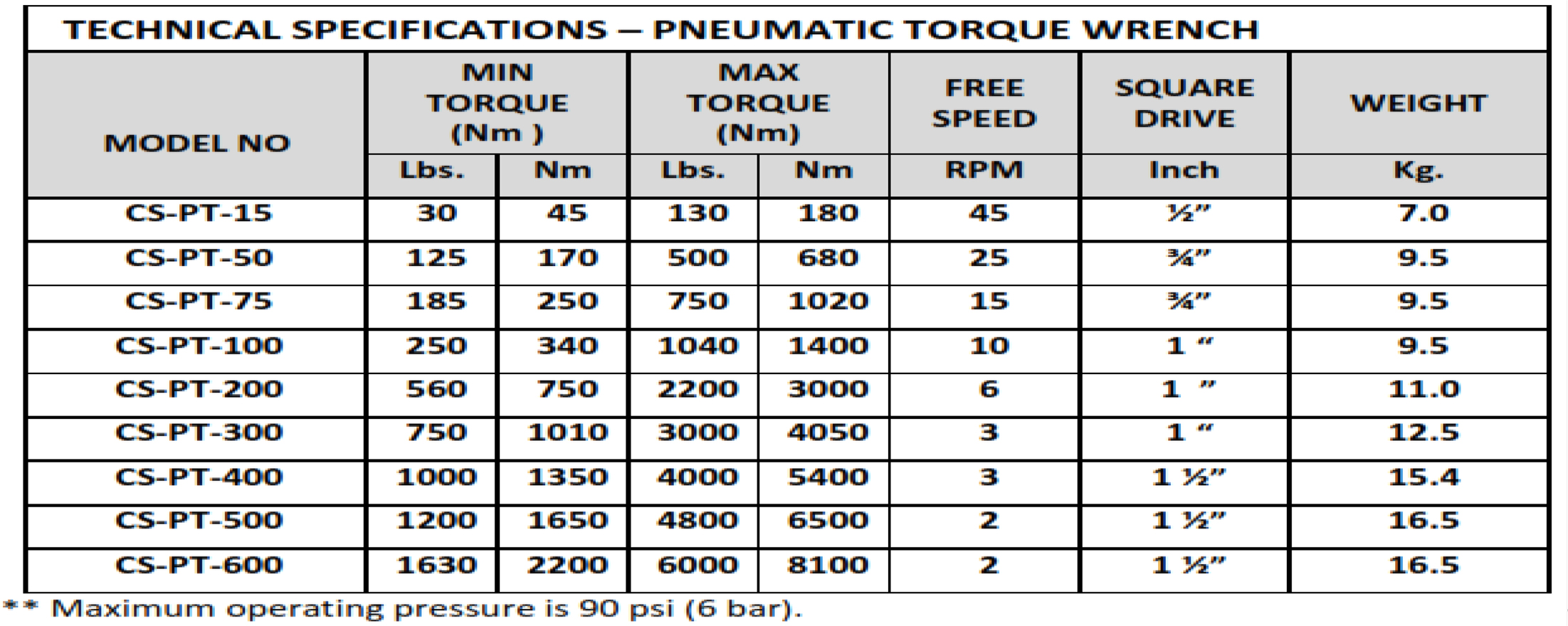

TECHNICAL DETAILS :

• Torque Accuracy : +/- 5%
• Repeatability : 2 %
• Motion Trigger : Single Trigger for Both
• Torque Adjustment : Adjustable Torquing Knob
